Steel Strapping Tools
Steel Strapping
Tools to Meet Highest Demands
FROMM produces a wide model variety of steel strapping tools. Depending on the application area the perfect tool for each industry can be found. The steel strapping tool range is divided in manual and pneumatical tools. Manual tools are ideal for flat objects and goods with small surfaces. The advantage of pneumatically powered tools is in faster strapping, uniformly and ideally tensioned straps plus the efficient mode of working.
Manual Tools
Model: A332
Tried and tested universal sealless steel strapping tool for all applications. Reliable, rugged and service- friendly. Characterized by their simple operation and light weigh, the A332 has become an indispensable helper worldwide. This type is available with the torque wrench tensioning system (TW model).
Strap qualities: Regular duty (Uniflex) , up to 850 N/mm²
Strap dimensions: 9.5 – 13.0 x 0.38 – 0.50 mm , 3/8 – ½ x .015 – .020"
Sealing type: Sealless
Weight: 3.3 kg / 7.3 lbs, 3.7 kg / 8.1 lbs (TW version)
Model: A333
Tried and tested universal sealless steel strapping tool for all applications. Reliable, rugged and service- friendly. Characterized by their simple operation and light weigh, the A333 has become an indispensable helper worldwide. This type is available with the torque wrench tensioning system (TW model).
Strap qualities: Regular duty (Uniflex) , up to 850 N/mm²
Strap dimensions: 9.5 – 13.0 x 0.38 – 0.50 mm , 3/8 – ½ x .015 – .020"
Sealing type: Sealless
Weight: 3.9 kg / 8.6 lbs , 4.3 kg / 9.5 lbs (TW version)
Model: A335
The A335 is identical in design to the A333 but is fitted with a specially machined feed wheel and gripper and is therefore suitable for use with high tensile steel strapping bands. Also available with the torque wrench tensioning system (TW model).
Strap qualities: High tensile (Ultraflex) up to 1100 N/mm²
Strap dimensions: 12.7 – 19.0 x 0.50 – 0.58 mm , ½ – ¾ x .020 – .023"
Sealing type: Sealless
Weight: 3.9 kg / 8.6 lbs , 4.3 kg / 9.5 lbs (TW version)
Model: A337
An ideal tool fo a wide range of vertical and horizontal strapping applications for flat goods in almost all industries. The unique innovative punching of the sealless MicroLock™ joint guarantees even greater safety. Opening and closing by the recoil effect is rendered impossible. The MicroLock™ seal is very popular for strapping packages which for instance are subject to shrinkage due to drying out.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strap dimensions: 9.5 – 20.0 x 0.38 – 0.63 mm , 3/8 – ¾ x .015 – .025"
Sealing type: Sealless with MicroLock™
Weight: 4.5 kg / 9.8 lbs , 4.7 kg / 10.4 lbs (TW version)
Model: A338
The special gearing permits very high strap tension of a maximum of 5500 N with a force of only 240 N. A handy sealless combination tool suitable for flat goods and characterized by its convenience and strength.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strap dimensions: 12.7 – 19.0 x 0.50 – 0.70 mm , ½ – ¾ x .020 – .028"
Sealing type: Sealless (available also with MicroLock™)
Weight: 5.7 kg / 12.6 lbs , 5.9 kg / 13.0 lbs (TW version)

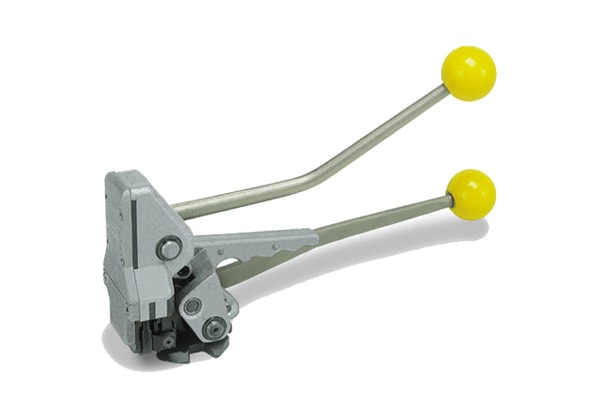

Model: A431
This lightweight and handy combination strapping tool is ideal for strapping bars, tubes, bundles and goods with an extremely small surface. Simple to operate and totally independent of any energy source the A431 has become as the ideal helper. Lap-over seals provided with a single notch joint are used for sealing.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strap dimensions: 10.0 – 19.0 x 0.38 – 0.63 mm , ¾ – ¾ x .015 – .025"
Sealing type: Metal seals
Weight: 3.4 kg / 7.5 lbs
Model: A301 / A412
Manual tensioner A301 is specially designed for flat objects and packages. Thanks to the feed wheel tensioning system an unlimited band take-up is permitted, guaranteeing taut tension tension with no tension loss. Using manual sealer model A412 the double notch joint is produced in one operation. The ideally curved levers prevent the handle from jamming, guaranteeing rational working with no risk of hand injury.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strap dimensions: 19.0 – 32.0 x 0.50 – 1.00 mm , ¾ – 1¼ x .020 – .040"
Sealing type: Metal seals
Weight: A301: 3.5 kg / 7.7 lbs , A412: 3.4 kg / 7.4 lbs
Model: A402 / A412
Model A402 is especially well suited for round packages with a very small supporting surface. Here too an unlimited take-up is possible and the double notch joint is produced using the manual sealer A412. The ideally curved levers prevent the handle from jamming, guaranteeing rational working with no risk of hand injury. The rubber spacer on the lower lever also permits sealing with both hands on the upper lever.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strap dimensions: 19.0 – 32.0 x 0.63 – 1.00 mm , ¾ – 1¼ x .025 – .040"
Sealing type: Metal seals
Weight: A402: 4.0 kg / 8.8 lbs , A412: 3.4 kg / 7.4 lbs
Pneumatic Tools
Model: A380
The A380 is used mainly in the timber and construction material industry. The massively constructed tool is characterized in particular by its reliability in shift work and with continous operation under the most rigorous conditions. It is produced in four tensioning levels. It is recommended to use the tool in suspended mode.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strap dimensions: 12.7 – 25.0 x 0.50 – 1.00 mm , ½ – 1 x .020 – .040"
Tension Versions: 4500 N, 6500 N, 7500 N,9500 N
Sealing type: Sealless
Weight: 17.4 kg / 38.4 lbs
Model: A383
The A383 is the big brother of the A380. Heavier and larger, it is intended for the same industries. Also available in two models; especially suitable for 25 and 32 mm wide steel straps. Only supplied as two-button version and recommended to be suspended.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strap dimensions: 19.0 – 32.0 x 0.63 – 1.30 mm , ¾ – 1¼ x .025 – .050"
Tension Versions: Sealless (available also with MicroLock™)
Sealing type: Sealless (available also with MicroLock™)
Weight: 23.5 kg / 51.8 lbs
Model: A385
The high-performance tool with MicroLock™ sealless joint has been designed for stationary applications. It tensions, seals and separates the strap automatically by actuating the appropriate keypad. It is produced in different tensioning levels and can process regular duty and high tensile steel straps. The uniform tension of the straps is guaranteed by a pneumatic drive and the security sealless MicroLock™ joint guarantees perfectly secured goods.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strap dimensions: 9.5 – 20.0 x 0.38 – 0.63 mm , 3/8 – ¾ x .015 – .025"
Tension Versions: 2200 N, 3500 N, 4100 N, 6500 N
Sealing type: Sealless
Weight: 10.0 kg / 22.0 lbs
Model: A390
Semi-automatic strapping tool for the pneumatic tensioning and manual sealless joining of steel straps. The pneumatic drive for the tensioning system guarantees fast and uniform tensioning. The low tool weight (only 5.1 kg) permits efficient working without the need for suspension.
Strap qualities: Regular duty (Uniflex), up to 850 N/mm²
Strap dimensions: 9.5 – 20.0 x 0.38 – 0.58 mm , 5/8 – ¾ x .015 – .023"
Max. Tension: 6000 N
Sealing type: Sealless
Weight: 5.1 kg / 11.2 lbs
Model: A391
Semi-automatic strapping tool for the pneumatic tensioning and manual sealless joining of steel straps. The pneumatic drive for the tensioning system guarantees fast and uniform tensioning. The low tool weight (only 5.1 kg) permits efficient working without the need for suspension.
Strap qualities: High tensile (Ultraflex) , up to 1100 N/mm²
Strap dimensions: 12.7 – 19.0 x 0.38 – 0.58 mm , ½ – ¾ x .015 – .023"
Max. Tension: 6000 N
Sealing type: Sealless (available also with MicroLock™)
Weight: 5.1 kg / 11.2 lbs
Model: A480
Due to its low weight the A480 does not necessarily have to be suspended. This permits more mobile operation. Ideal for strapping tubes, wire coils and all kinds of small bundles, it is a handy and popular tool in numerous industries. Available in two different tensioning levels.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strap dimensions: 10.0 – 19.0 x 0.38 – 0.63 mm , 3/8 – ¾ x .015 – .025"
Tension Versions: 2500 N, 4500 N
Sealing type: Metal seals
Weight: 4.5 kg / 9.9 lbs
Model: A482
Due to its low weight the A482 does not necessarily have to be suspended. Straps of up to 0.90 mm thickness can be processed. The perfect double notch upcut seal joint guarantees a strength of 75%. The modern A482 optimizes the strapping of packages, mainly in the metal industry.
Strap qualities:Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strap dimensions: 19.0 x 0.63 – 0.90 mm , ¾ x .025 – .035"
Tension Versions: 4000 N, 7000 N
Sealing type: Metal seals
Weight: 7.0 kg / 15.41 lbs
Model: A483
Heavier and larger than the A482, the A483 is suitable for use in the same industries. Its main application is with 25 and 32 mm wide steel straps. Its pneumatically raised feed wheel greatly assists the introduction of heavy steel straps. Ideal for strapping steel coils, tubes and rods in all positions, as it can be fitted with four different suspension brackets. The A483 has proved its worth especially under shift and continous working conditions.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strap dimensions: 25.0 – 32.0 x 0.80 – 1.00 mm , 1 –1¼ x .031 – .040"
Tension Versions: 7000 N, 9000
Sealing type: Metal seals
Weight: 18.0kg / 39.7 lbs
Model: A452
Pneumatic pusher type tensioner A452 is characterized by its very high strap tension force of 8500 N. Thanks to its free-wheeling system, no strap tension is lost on completion of the tensioning cycle. This extremely rugged, fast and lightweight tool is suitable for both mobile and stationary applications.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strap dimensions: 19.0 – 32.0 x 0.63 – 1.27 mm , ¾ – 1¼ x .025 – .050"
Max. Tension: 8500 N
Sealing type: Metal seals
Sealing: with separate sealer (Model A412 or A461)
Weight: 4.4 kg / 9.6 lbs
Model: A461
Pneumatic single-hand sealer A461 used for joints can be operated single-handed. It is fitted with a safety mechanism which prevents poor seal joints resulting from faulty operation.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strap dimensions: 19.0 – 32.0 x 0.63 – 1.00 mm , ¾ – 1¼ x .025 – .040"
Tensioning: with separate tensioner (Model A452)
Weight: 4.2 kg / 9.3 lbs
